User Manual for Avid NEXIS | PRO 20TB Shared Storage System with 2 SSD Drives Click to enlarge the picture
Contents of the user manual for the Avid NEXIS | PRO 20TB Shared
- Product category: Network Attached Storage Drives Avid
- Brand: Avid
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avid Network Attached Storage Drives
 |
User manual for the Avid NEXIS | PRO 20TB Shared contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avid product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avid user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avid product will considerably shorten its lifespan!
|

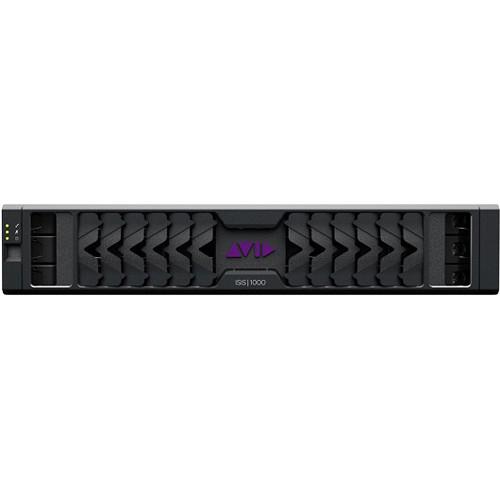

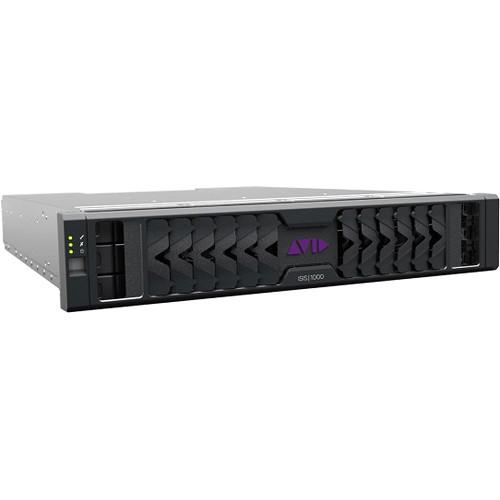

Product description Centralize your video storage with Avid's NEXIS | PRO 20TB Shared Storage System. Using 10 7200 rpm drives with 2TB of storage each, NEXIS | PRO creates a safe and reliable storage solution for your professional video or audio workflow. NEXIS | PRO seamlessly integrates with Avid professional software programs. It can store all your video, audio, and other essential files for your Avid Media Composer and Pro Tools projects while granting simultaneous access to up to 24 users. Despite its advanced functionality, NEXIS | PRO is designed to be easy to set up and start running without the aid of a networking professional. For protection and increased speed, NEXIS | PRO uses redundant storage which can retain your data through two simultaneous drive failures. In the event of a failure, NEXIS | PRO can rebuild data to replacement drives very quickly to maintain redundancy. NEXIS | PRO is contained in a compact 2RU chassis so you can mount it in a rack inside your workspace or keep it with your other networking hardware. - Collaborate on Projects in Real Time
- NEXIS | PRO mitigates the storage sharing and media copying shuffle of using individual USB, FireWire, eSATA, or Thunderbolt drives, allowing up to 24 editors, assistants, loggers, and other contributors to access media at the same time.
- Scalable Storage
- With NEXIS | PRO you can expand your raw storage capacity from 20TB up to 80TB, in 20TB increments, by adding extra NEXIS Storage Engines as needed. Connect up to four Engines together for maximum capacity and bandwidth, enabling you to keep your valuable assets protected, available, and within easy reach through a centralized media hub.
- Fast Data Rates
- With support for real-time SD, HD, 2K, and 4K media performance, NEXIS | PRO is optimized for modern media production workflows. If you need more throughput power to support more demanding high-resolution projects and collaborations, you can increase bandwidth up to 1,200 MB/s by adding more Storage Engines into your setup.
- Supports Avid and 3rd Party Software

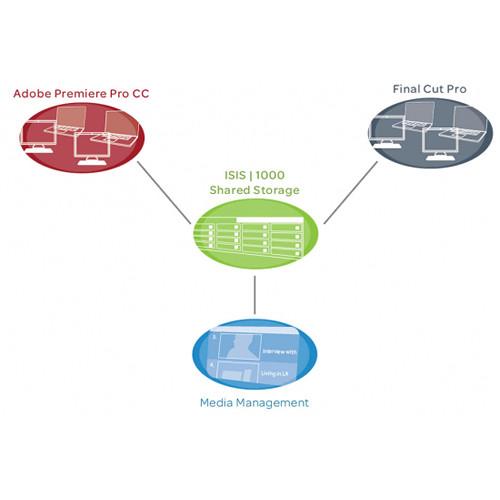

- As a component of the Avid MediaCentral Platform, NEXIS | PRO is designed to be used with both Avid and third-party editing and asset management tools. You can accelerate your workflow, whether using Avid Media Composer, Avid Pro Tools, Apple Final Cut Pro, or Adobe Premiere. And you can manage media through easy integration with third-party asset management software. Plus, NEXIS | PRO works with NETGEAR XS712T and Dell N2024 and N3024 switches, precluding costly and complex network switches.
- Simple End-User Setup
- NEXIS | PRO makes system set-up and management easy, so you can focus on your work, not on becoming an IT expert. Additionally the unit's self-balancing, distributed architecture and metadata management intelligently handles data redistribution, media protection, and other tasks automatically, for consistent performance under all load conditions.
In the Box Avid NEXIS | PRO 20TB Shared Storage System with 2 SSD Drives Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid NEXIS | PRO 20TB Shared Storage System with 2 SSD Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid ISIS 1000 Specs | Capacity | 10 x 2TB HDD (20TB total, 16TB useable) | | Connections | Client Access: 10GbE network
Management: 1GbE | | Platform Support | Client Operating Systems:
Windows 7/8 (64-bit)
Mac OS X Mountain Lion/Mavericks/Yosemite (64-bit)
Client Network Connections:
Gigabit Ethernet
Dual Gigabit Ethernet
10 Gigabit Ethernet
Dual 10 Gigabit Ethernet
Collaboration:
Number of files/folders: up to 3 million
User accounts: up to 5000
User groups: up to 1000
Supported Avid Products:
Media Composer (also works with Symphony and NewsCutter options)
Pro Tools
Supported Third-Party Products:
Adobe Premiere Pro
Apple Final Cut Pro | | Environmental | Operating Temperature: 41 to 104°F / 5 to 40°C (95°F/35°C above 6500' / 2000 m)
Relative Humidity: 20 to 80% non-condensing
Maximum Power Consumption: 764 W
Average Power Consumption: 380 W | | Dimensions | 19 x 3.5 x 24.8" / 483 x 89 x 630 mm
Rack Units: 2 RU | | | | Package Weight | 71.5 lb | | Box Dimensions (LxWxH) | 32.8 x 26.4 x 10.8" |
